Panasia

PANASIA is an environmentally friendly, renewable energy supplying facility, a leader in the global market, with their key competencies of development and product expansion have led to the development of marine and air environment protection and the provision of new renewable energy sources. Through ongoing innovation and change, PANASIA is providing new value generation and quality services to their customers. PANASIA operates local subsidiaries in Europe, China, and Japan, and strengthening global competitiveness by working closely with representatives from all over the world.

PANASIA will continue their journey in opening a brighter future with systematic quality management systems, strong belief in principles, and passionate staff who continue to overcome industry challenges.

PANASIA is working to enhance client satisfaction and trust by providing the best quality of their products, optimizing their smart factories and reducing production costs by minimizing waste, and innovation.

In order to produce the best quality products, PANASIA implements strict quality testing, during the stages of manufacturing, assembling, and performance testing, with each country’s classification association and authorized inspection organization.

PANASIA’s R&D facilities have worked hard over the years to develop state-of-the-art technology in the marine industry in order to be a leading force in offshore plant and environmental business. PANASIA possesses patents for their main products and technology, and they continue to invest significant funds and resources towards R&D in efforts to developing new products needed in the future.

For cost-effective product development, the process of managing orders, production, and maintenance of the entire project is managed thoroughly by utilizing the E-PANASIA System. In addition, the production system introduces cutting edge technology and automation facilities to minimize errors that can be occured in production. Optimizing production processes and reducing costs are PANASIA goals in maximizing customer satisfaction.

Main Products:

De-Sox System PasoxTM smart V3.0

This system removes and reduces sulphur oxides, fine dust, and other pollutants that are emitted from the vessel’s engine, by using seawater and NaOH.

Features:

  • Lower / remove pollutive materials (SOx, PM) from ship’s emission
  • Method of dissolving in liquid form by contacting SOx with water
  • Designed to operate in hybrid (Open/Close) mode (Using seawater at open mode / Using NaOH at close mode)
  • Low maintenance costs / Low pressure loss
  • Using corrosion resistant materials

PaSOxTM Scrubber Types:

Version 3.0 of the Scrubber has been launched, upgrading the design based on the maximum gas flow depending on the ship’s operating conditions. PANASIA PaSOx™ Scrubber is mainly divided into U-Type and I-Type. Depending on the configuration of main engine, aux. engine and boiler etc., U–Type is composed of Single Inlet System and Multi Inlet System respectively and I-Type is classified into Single Stream System and Combined Stream System.

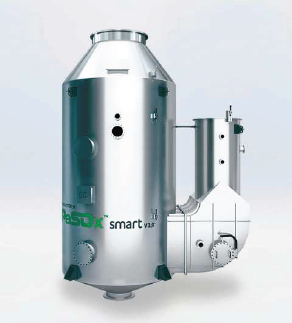

U-Type:

The Footprint in U–Type Scrubber is wider in width and shorter in height than that in I-Type. In U–Type Scrubber System, each exhaust gas discharge medium (ex. main engine, aux. engine and boiler) has its own bypass line, and dry mode is not applicable. Packing is used in the inside of Scrubber.

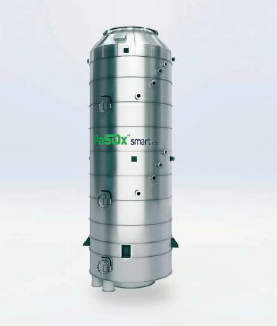

I-Type:

The Footprint in I–Type Scrubber is more narrow in width and higher in height than that in U-Type. In I–Type Scrubber System, Dry mode is available and Bypass Valve is not applied. And Packing is not used in the inside of Scrubber. I-Type is recommended if customers are concerned about cargo loss due to the lack of the space.

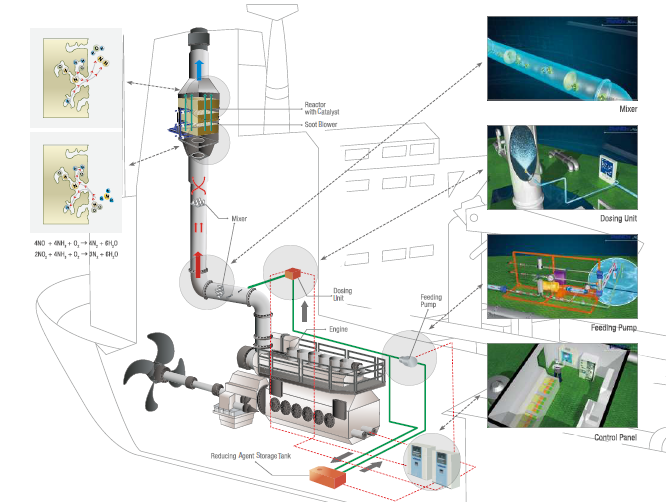

De-NOx SCR System PaNOxTM Marine

PANASIA’s SCR flue gas De-NOx system, PaNOx™ Marine, adopted the Selective Catalytic Reduction (SCR) method. It is an environmentally friendly equipment that decomposes NOx present in flue gas into harmless H2O and N2, by chemically reacting the NOx with a reducing agent along a catalyst layer then discharging safely into the atmosphere.

PANASIA supply SCR systems not only for Marine application, but on land applications such as Power plants, HRSG and Boilers. Starting with installation in our test facility in 2001, PANASIA successfully supplied its first SCR system to a Korean shipyard Sept., 2011. PANASIA acquired the internationally recognized certification, TierⅢ EAIPP CERT, from KR for the first time in South Korea and also achieved type approval from DNV GL. Furthermore, PANASIA steadily developed our core technology while supplying PaNOx™ and PaNOx™ Marine.

Especially PANASIA has supplied their De-NOx facility to power generation, boiler, gas turbine and engine in California, where the most strict regulations on nitrogen, and it’s best quality and performance gives a trust to customers.

Retrofit Service

PANASIA thrives to be the best partner in system retrofitting on existing ships.

PANASIA provides a specialized retrofit service, which provides engineering and services for their products (BWTS, SOx Scrubber, Level Measurement system).

PANASIA is becoming a leader in the industry, providing advanced engineering and outstanding service, recognized for its technology, not only in Korea, but worldwide.

PANASIA guarantees to become the best partner for existing ships in the field of BWTS retrofit construction, by providing the best solution for their clients’ vessels.

A wide range of retrofit service options are available to PANASIA‘s customer:

Equipment Supplier

  • PANASIA Equipment
  • Commissioning
  • Demonstration

Engineering Company

  • Onboard Survey
  • Basic Design
  • Owner/ Class Plan Approval
  • Interface with Existing
  • Automation System

Design Company

  • Installation Drawings
  • Manufacturing Drawings

Outfitting Material Supplier

  • Steel Structures
  • Pipe Spools
  • Cables
  • Installation Materials

Installation Labor

  • Pipe Spools Installation
  • Laying & Connection Cables

Supervisor

  • Schedule Control
  • Quality Control
  • Instruction to Workers

Four types of retrofit contracts available:

Case 1: Equipment+ Construction Supervision

Case 2: Equipment+ Engineering+ Construction Supervision

Four types of retrofit contracts available:

Case 1: Equipment+ Construction Supervision

Case 2: Equipment+ Engineering+ Construction Supervision
